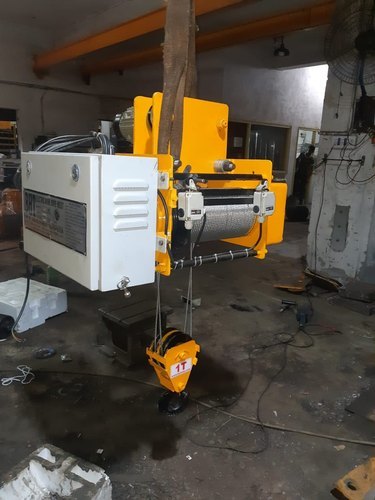

We have created our spotless image amongst our clients by manufacturing and supplying Electric Wire Rope Hoist. This hoist is quite easy to operate & can be used as a substitute of manual chain blocks. It is quite simple to install & can be operated by simply plugging in the socket. We manufacture this hoist at our sound production unit, using high quality materials and components. It is hugely demanded in machine shop, engineering industry and foundry for medium to heavy duty load lifting & handling applications. Electric Wire Rope Hoist comes in different power specifications as per client's requirements. It has gravity type emergency limit switch and electro - magnetic brake.
Specifications:
Product details
Application | Standard |
Wire Length (meters) | 4-6,6-8 |
Trolley Option | Without Trolley,With Trolley |
Capacity | 0-1 ton,1-3 ton,3-6 ton,6-10 ton,10-15 ton,>15 ton |
Capacity(tons) | 3-6 ton,1-3 ton,0-1 ton,6-10 ton,10-15 ton,>15 ton |
Brand | BHT |
Technical Specifications
Model | S.W.L in kg. | Lift (mtr) | Wire rope (Dia) | No. of Fall | Hoisting speed (mtr/min) | Hoisting Motor (HP) | C.T. Motor (HP) | A | B | C | D | E | F |
M1/0.5/6 | 500 | 6 | 6 | 2 | 6 | 1 | 0.5 | 640 | 780 | 475 | 320 | 300 | 590 |
M1/1/3 | 1000 | 6 | 6 | 4 | 3 | 1 | 0.5 | 670 | 780 | 475 | 320 | 300 | 620 |
M2/1/6 | 1000 | 6 | 8 | 2 | 6 | 2 | 0.5 | 680 | 885 | 520 | 410 | 410 | 630 |
M2/1/9 | 1000 | 6 | 8 | 2 | 9 | 3 | 0.5 | 680 | 885 | 520 | 410 | 410 | 630 |
M2/1/12 | 1000 | 6 | 8 | 2 | 12 | 5 | 0.5 | 680 | 885 | 520 | 410 | 410 | 630 |
M2/1.5/4 | 1500 | 6 | 8 | 3 | 4 | 2 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
M2/1.5/6 | 1500 | 6 | 8 | 3 | 6 | 3 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
M2/1.5/8 | 1500 | 6 | 8 | 3 | 8 | 5 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
M2/2/3 | 2000 | 6 | 8 | 4 | 3 | 2 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
M2/2/4.5 | 2000 | 6 | 8 | 4 | 4.5 | 3 | 0.5 | 730 | 885 | 520 | 410 | 410 | 680 |
M3/2/4.5 | 2000 | 6 | 10 | 2 | 4.5 | 3 | 0.5 | 800 | 885 | 685 | 510 | 480 | 750 |
M3/2/7.5 | 2000 | 6 | 10 | 2 | 7.5 | 5 | 0.5 | 800 | 885 | 685 | 510 | 480 | 750 |
M3/2/11 | 2000 | 6 | 10 | 2 | 11 | 7.5 | 0.5 | 800 | 885 | 685 | 510 | 480 | 750 |
M3/3/3 | 3000 | 6 | 10 | 4 | 3 | 3 | 0.5 | 940 | 885 | 685 | 510 | 480 | 810 |
M3/3/5 | 3000 | 6 | 10 | 4 | 5 | 5 | 0.5 | 940 | 885 | 685 | 510 | 480 | 810 |
M3/3/7.5 | 3000 | 6 | 10 | 4 | 7.5 | 7.5 | 0.5 | 940 | 885 | 685 | 510 | 480 | 810 |
